Instruction Manual

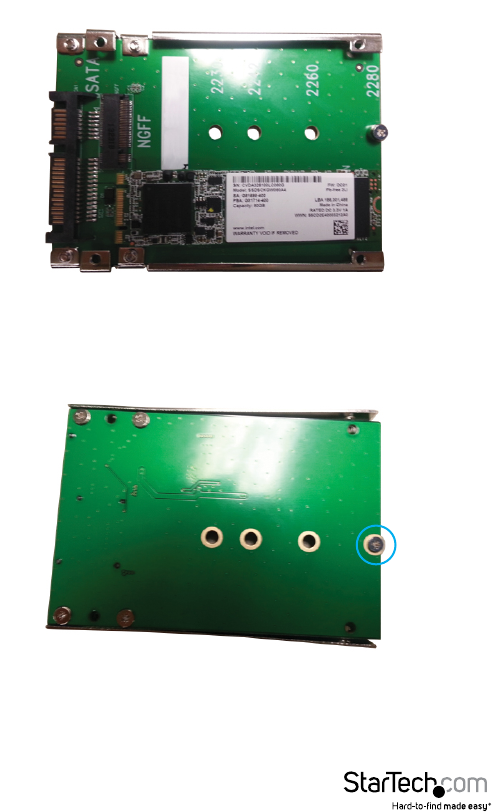

2. (Only required if the drive installation bracket requires relocating) Remove the

screw holding the bracket in place on the reverse side using a Philips head screw

driver (Not included).

Note: There are screws located on either side of the bracket, ensure the reverse

screw is the one removed, see photo below.

3. (Only required if the drive installation bracket requires relocating) Reseat

the drive installation bracket in the drive installation hole that matches your SSD.

Replace the removed screw on the reverse side by driving it into place using a

phillips head screw driver.
